200A
LiFePO4 prismatic cell
25S4P
400Ah @0.5C discharge rate
80V
32000Wh
62.5~91.25
6000 cycles DOD80% 0.2C/0.5C
0.2C(CC-CV)
| Model | JszT-LF36385FLP | |
| Technical Specifications | Cell Chemistry | LiFePO4 prismatic cell |
| Cell Configuration | 25S4P | |
| Nominal Capacity(Ah) | 400Ah @0.5C discharge rate | |
| Nominal Voltage(V) | 80V | |
| Nominal Energy(Wh) | 32000Wh | |
| Voltage Range(V) | 62.5~91.25 | |
| Cycle Life | 6000 cycles DOD80% 0.2C/0.5C | |
| Charging | Standard Charge Current(A) | 0.2C(CC-CV) |
| Max. Charge Current(A) | 200A | |
| Charge Condition | @-10℃~55℃ | |
| Discharging | Standard Discharge Current(A) | 0.5C(Constant current discharging) |
| Max. Continuous Discharge Current(A) | 300A | |
| Peak Discharge Current(A) / CCA | 600A（≤3s） | |
| Discharge Condition | @-10~60℃ | |
| Protection & Function | Safety Function | Overcharge,over-discharge,over-current and temperature protection |
| Communication | Available upon requirements (UART / RS485 / CANBUS) | |
| Heating System (optional) | Available upon requirements | |

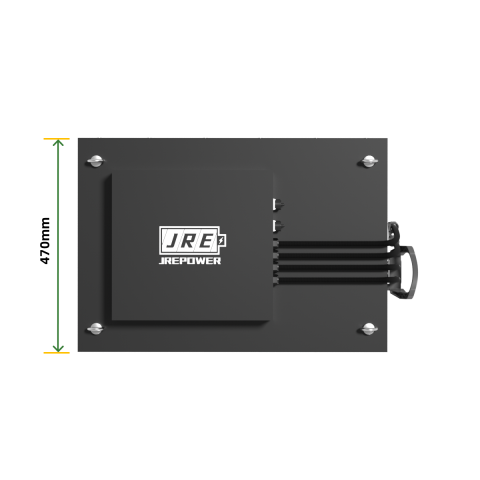

| Appearance And Size | Size | 720*570*280 mm |
| 28.35*22.44*11.02 in | ||
| Weight | 251.08±20 kg | |
| 553.54±44 lbs | ||
| Enclosure | Steel Case, IP64 | |
| Terminals/Interfaces | 350 Anderson Plug / REMA Plug | |
| Maintenance & Storage | Maintenance | The battery pack should be fully charged every 3 months. |
| Storage Condition @-20~25℃ | Can be kept for 3 months at 50% capacity | |
| Storage Condition @-20~45℃ | Can be kept for 1 month at 50% capacity |
