LiFePO4 prismatic cell
16S1P
120Ah @0.5C discharge rate
51.2V
6144Wh
40-58.4V
6000 cycles DOD80% 0.2C/0.5C
0.2C(CC-CV)
120A
| Model | JszG-LF27105GCP | |
| Technical Specifications | Cell Chemistry | LiFePO4 prismatic cell |
| Cell Configuration | 16S1P | |
| Nominal Capacity(Ah) | 120Ah @0.5C discharge rate | |
| Nominal Voltage(V) | 51.2V | |
| Nominal Energy(Wh) | 6144Wh | |
| Voltage Range(V) | 40-58.4V | |
| Cycle Life | 6000 cycles DOD80% 0.2C/0.5C | |
| Charging | Standard Charge Current(A) | 0.2C(CC-CV) |
| Max. Charge Current(A) | 120A | |
| Charge Condition | @-10℃~55℃ | |
| Discharging | Standard Discharge Current(A) | 0.5C(Constant current discharging) |
| Max. Continuous Discharge Current(A) | 200A | |
| Peak Discharge Current(A) / CCA | 500A(≤3S) | |
| Discharge Condition | @-10~60 ℃ | |
| Protection & Function | Safety Function | Overcharge, over-discharge, over-current and temperature protection |
| Communication | Available upon requirements (UART / RS485 / CANBUS) | |
| Heating System (optional) | Available upon requirements | |

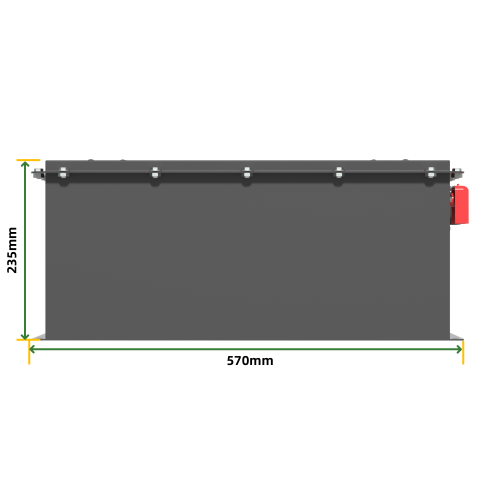

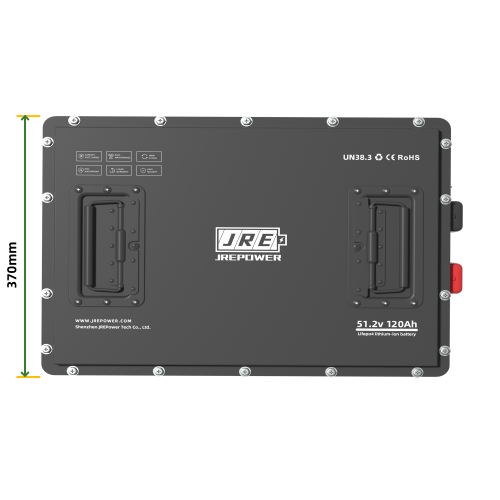

| Appearance And Size | Size | 560*370*235 mm |
| 22.1*14.6*9.3 in | ||
| Weight | 54.6 ±3 kg | |
| 120.4 ±6.6 lbs | ||
| Enclosure | Steel Case , IP65 | |
| Terminals/Interfaces | M8 Terminal, Aviation connector | |
| Maintenance & Storage | Maintenance | The battery pack should be fully charged every 3 months. |
| Storage Condition @-20~25℃ | Can be kept for 3 months at 50% capacity | |
| Storage Condition @-20~45℃ | Can be kept for 1 month at 50% capacity |
