LiFePO4 prismatic cell
4S1P
100Ah @0.5C discharge rate
12.8V
1280Wh
10-14.6V
6000 cycles DOD80% 0.2C/0.5C
0.2C(CC-CV)
1C(CC-CV)
| Model | JszE-LF1585RE | |
| Technical Specifications | Cell Chemistry | LiFePO4 prismatic cell |
| Cell Configuration | 4S1P | |
| Nominal Capacity(Ah) | 100Ah @0.5C discharge rate | |
| Nominal Voltage(V) | 12.8V | |
| Nominal Energy(Wh) | 1280Wh | |
| Voltage Range(V) | 10-14.6V | |
| Cycle Life | 6000 cycles DOD80% 0.2C/0.5C | |
| Charging | Standard Charge Current(A) | 0.2C(CC-CV) |
| Max. Charge Current(A) | 1C(CC-CV) | |
| Charge Condition | @0℃~45℃ | |
| Discharging | Standard Discharge Current(A) | 0.5C(Constant current discharging) |
| Max. Continuous Discharge Current(A) | 100A | |
| Peak Discharge Current(A) / CCA | - | |
| Discharge Condition | @-10~60℃ | |
| Protection & Function | Safety Function | Overcharge,over-discharge,over-current and temperature protection |
| Communication | Available upon requirements (UART / RS485 / CANBUS) | |
| Heating System (optional) | Available upon requirements | |

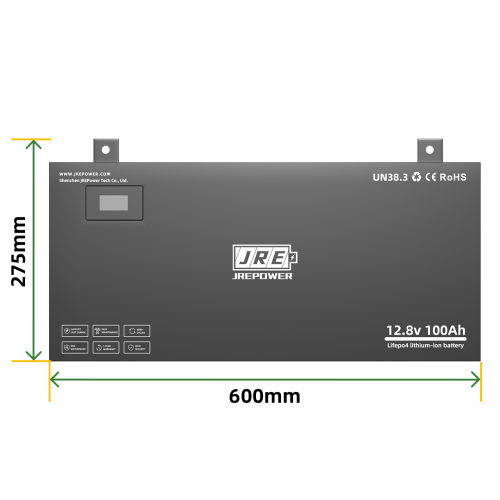

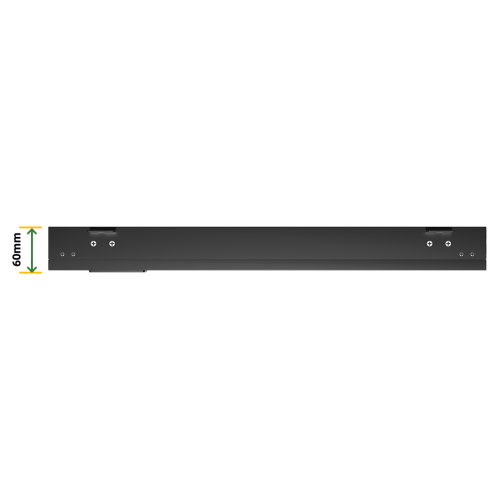

| Appearance And Size | Size | 600*275*60mm |
| 23.62 * 10.83 * 2.36 in | ||
| Weight | 14.75±1 kg | |
| 32.52±2.20 lbs | ||
| Enclosure | Steel Case, | |
| Terminals/Interfaces | M8 Terminal/Others | |
| Maintenance & Storage | Maintenance | The battery pack should be fully charged every 3 months. |
| Storage Condition @-20~25℃ | Can be kept for 3 months at 50% capacity | |
| Storage Condition @-20~45℃ | Can be kept for 1 month at 50% capacity |
