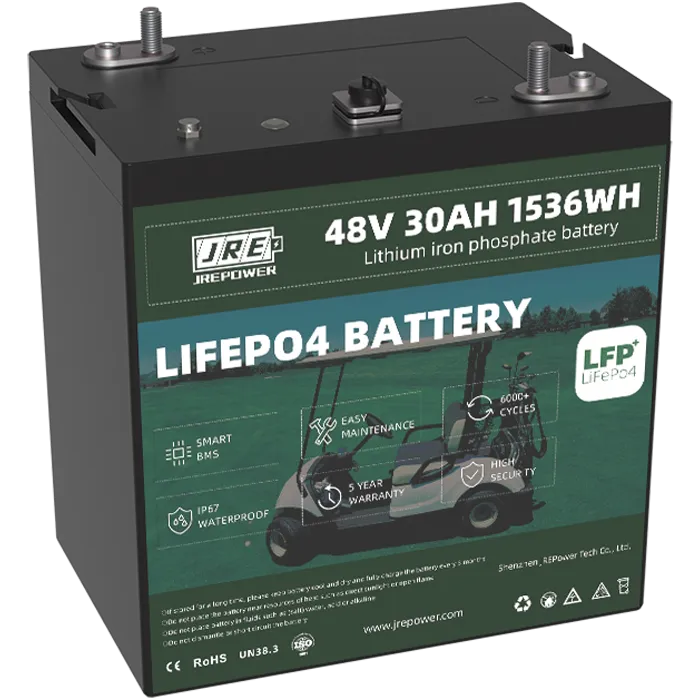

JszG-LF2715
51.2V
30Ah
1536Wh
264*180*294 mm
10.4*7.1*11.6 in
16.8 ± 3kg
37.1 ± 6.6 lbs
30A
60A
100A(≤3S)
| Technical Specifications | Model | JszG-LF2715 |
| Cell Chemistry | LiFePO4 prismatic cell | |
| Cell Configuration | 16S1P | |
| Nominal Capacity(Ah) | 30Ah @0.5C discharge rate | |
| Nominal Voltage(V) | 51.2V | |
| Nominal Energy(Wh) | 1536Wh | |
| Voltage Range(V) | 40-58.4V | |
| Cycle Life | 6000 cycles DOD80% 0.2C/0.5C | |
| Charging | Standard Charge Current(A) | 0.2C(CC-CV) |
| Max. Charge Current(A) | 30A | |
| Charge Condition | @-10°C~55°C | |
| Discharging | Standard Discharge Current(A) | 0.5C(Constant current discharging) |
| Max. Continuous Discharge Current(A) | 60A | |
| Peak Discharge Current(A) | 100A(±3S) | |
| Discharge Condition | @-10~60°C | |
| Protection & Function | Safety Function | Overcharge, over-discharge, over-current and temperature protection |
| Communication | Available upon requirements (UART / RS485 / CANBUS) | |
| Heating System(optional) | Available upon requirements | |
| Appearance And Size | Size | 264*180*294 mm 10.4*7.1*11.6 in |
| Weight | 16.8 ± 3kg 37.1 ± 6.6 lbs | |
| Enclosure | ABS Case, IP67 | |
| Terminals/Interfaces | M8 Terminal, Aviation connector | |
| Maintenance & Storage | Maintenance | The battery pack should be fully charged every 3 months. |
| Storage Condition @-20~25°C | Can be kept for 3 months at 50% capacity | |
| Storage Condition @-20~45°C | Can be kept for 1 month at 50% capacity |
