LiFePO4 prismatic cell
24S1P
60Ah @0.5C discharge rate
76.8V
4608Wh
60-87.6V
6000 cycles DOD80% 0.2C/0.5C
0.2C(CC-CV)
60A
| Model | JszG-LF3545GCP | |
| Technical Specifications | Cell Chemistry | LiFePO4 prismatic cell |
| Cell Configuration | 24S1P | |
| Nominal Capacity(Ah) | 60Ah @0.5C discharge rate | |
| Nominal Voltage(V) | 76.8V | |
| Nominal Energy(Wh) | 4608Wh | |
| Voltage Range(V) | 60-87.6V | |
| Cycle Life | 6000 cycles DOD80% 0.2C/0.5C | |
| Charging | Standard Charge Current(A) | 0.2C(CC-CV) |
| Max. Charge Current(A) | 60A | |
| Charge Condition | @-10℃~55℃ | |
| Discharging | Standard Discharge Current(A) | 0.5C(Constant current discharging) |
| Max. Continuous Discharge Current(A) | 150A | |
| Peak Discharge Current(A) / CCA | 300A(≤3S) | |
| Discharge Condition | @-10~60 ℃ | |
| Protection & Function | Safety Function | Overcharge, over-discharge, over-current and temperature protection |
| Communication | Available upon requirements (UART / RS485 / CANBUS) | |
| Heating System (optional) | Available upon requirements | |

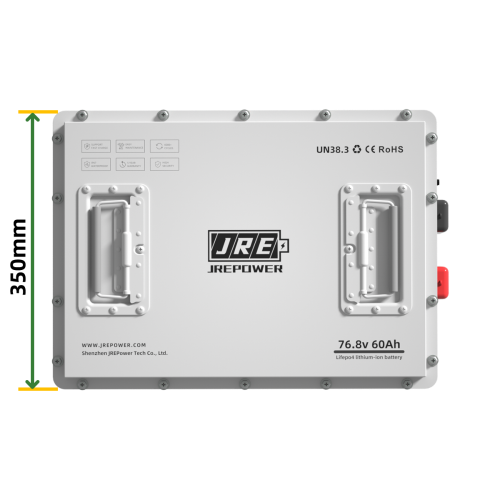

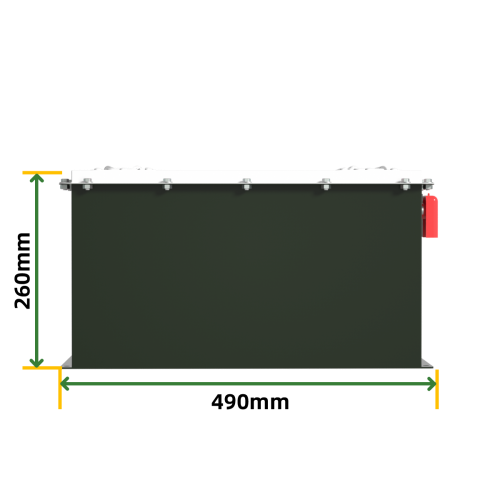

| Appearance And Size | Size | 490*350*260 mm |
| 19.3*13.8*7.5 in | ||
| Weight | 43.2 ±3 kg | |
| 95.2 ±6.6 lbs | ||
| Enclosure | Steel Case , IP65 | |
| Terminals/Interfaces | M8 Terminal, Aviation connector | |
| Maintenance & Storage | Maintenance | The battery pack should be fully charged every 3 months. |
| Storage Condition @-20~25℃ | Can be kept for 3 months at 50% capacity | |
| Storage Condition @-20~45℃ | Can be kept for 1 month at 50% capacity |
